Trackmachine 01 FRS

CARBON BLACK / WHITE

Trackmachine 01 Premium Carbon Frameset
Trackmachine 01 Steerer for standard stems
1"1/8 Steerer Shaft
Compatible with BMC Pursuit Base Bar

Regular priceEUR 6.999,00
EUR /

SKU: 30005785
Size
  • In stock, ready to ship
  • Inventory on the way
  • Shipped to your local bike shop

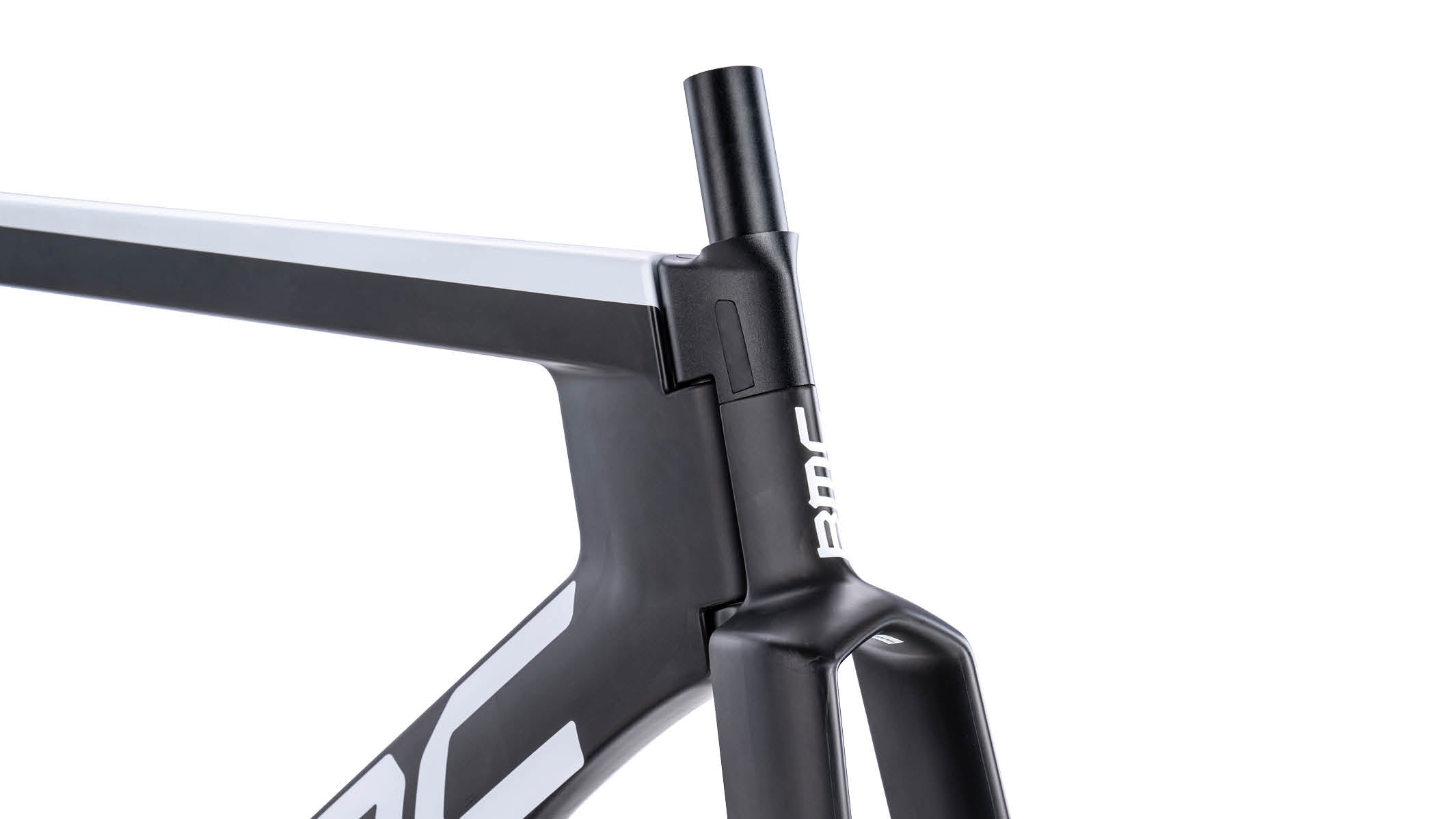

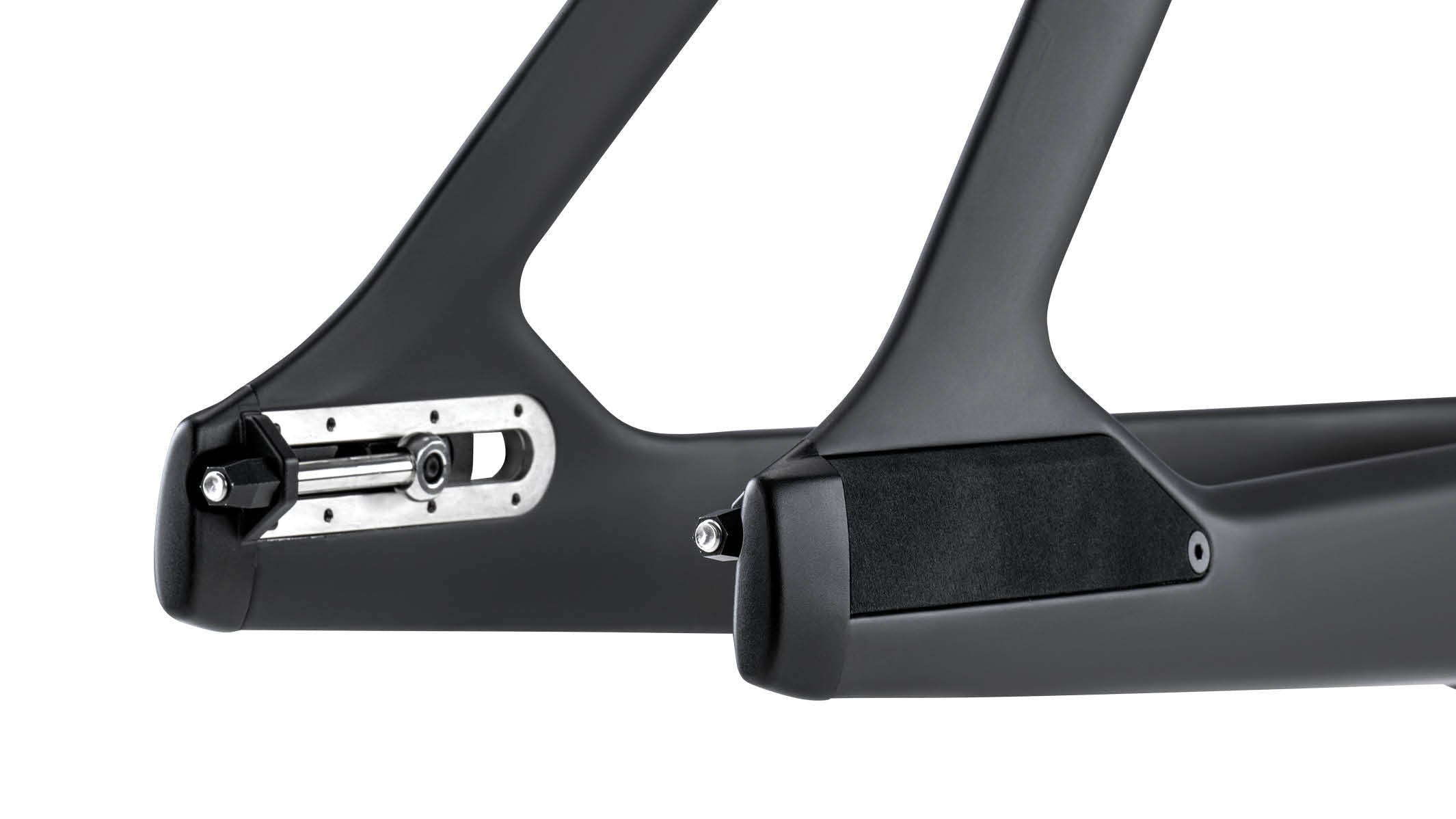

The Trackmachine 01 FRS represents the pinnacle of track bike engineering, boasting a meticulously crafted design. In close development cooperation with Swiss Cycling athletes, this bike consistently delivers remarkable efficiency and adaptability. It seamlessly transforms to suit a variety of track disciplines. Constructed from high-grade carbon and thoughtfully engineered, it showcases the Trackmachine Halo fork with wide fork legs, adjustable steel rear dropouts, a threaded bottom bracket, and an Aero Seatpost. The frameset is compatible with any 1"1/8 stem and is as well compatible with the optional Trackmachine 01 Rotation Stem, while it's also compatible with the separately available BMC Pursuit Base Bar.

Technology

Technical Overview

Frameset

Frame:
Trackmachine 01 Premium Carbon with Aero Design | Steel Sliding Dropout | Compatible to fit BMC Pursuit Base Bar (sold separately)

Fork:
Trackmachine 01 Premium Carbon with Aero Hinge-Design

Cockpit

Stem:
Stem not included. Compatible with standard 1"1/8 stem. Compatible with Trackmachine 01 Rotation Stem | Stem Length: 80mm (S), 100mm (M), 120mm (L)

Seat

Seatpost:

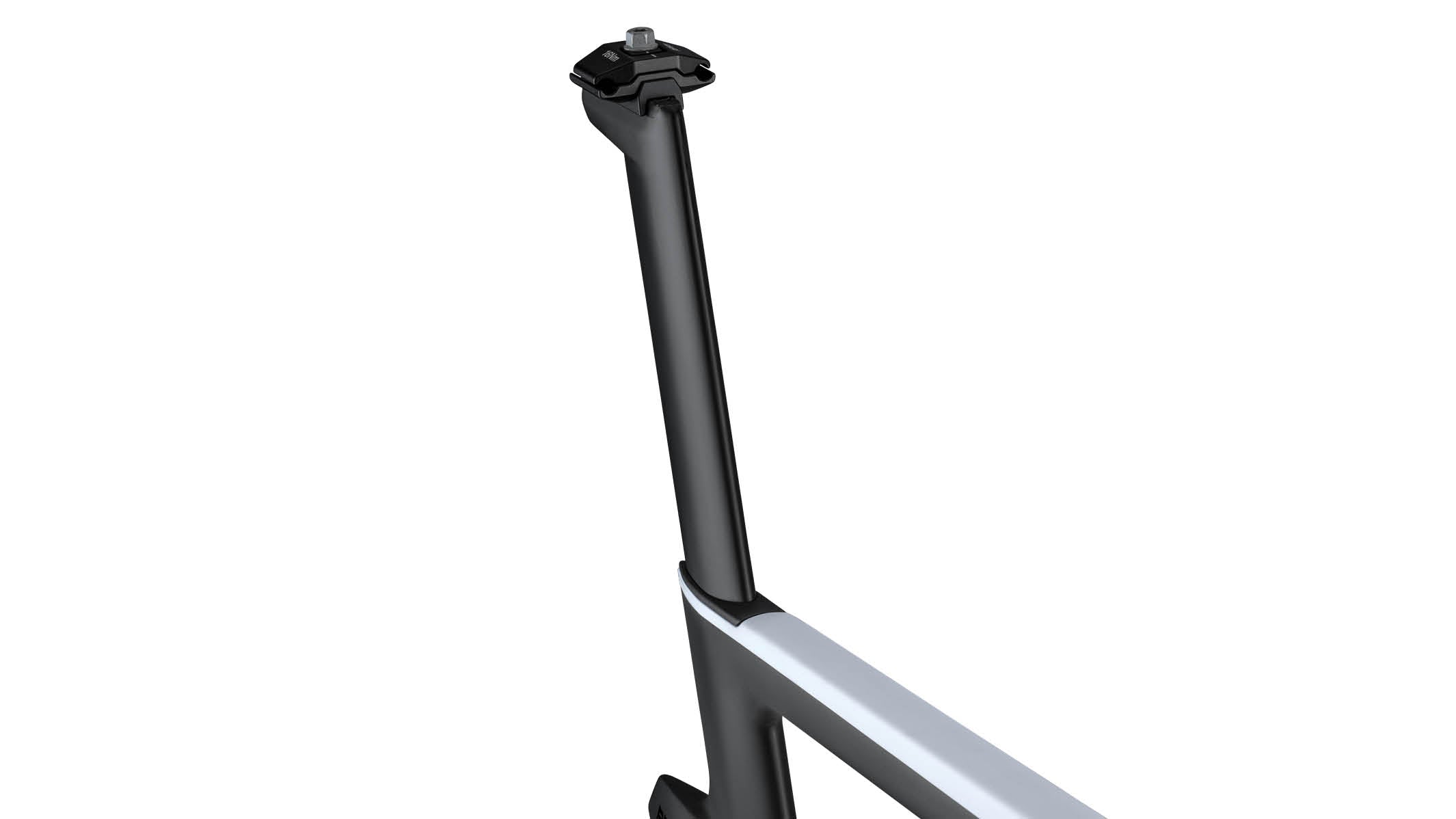

Trackmachine 01 Premium Carbon Aero Seatpost with P2P Positioning SyStem

Additional Information

Tire Clearance:
26mm

ASTM Classification:
Level 1

System Weight Limit:
150kg

Size S M L
Rider Height <173 170-185 >183
Reach 434 459 452
Stack 436 471 526
BB Drop 64 64 64
Fork Length 364 364 364
Fork Rake 45 45 45
Front Center 605 642 653
Head Tube 41.2 78 135
Head Tube Angle 72 72 72
Rear Center 375-444 375-444 375-444
Seat Angle 75.5 75.5 75.5
Seat Tube 484 521 577
Seatpost Length 383 383 383
Standover Height 747 782 837
Top Tube 554 588 596
Trail 60 60 60
Wheelbase 972-1042 1008-1078 1019-1089
