Trackmachine 01 FRS

CARBON / WHITE

Vmax Aero Stem
Vmax Aero Post
P2P Fit Adjustment Technology

Regular priceEUR 3.999,00
EUR /

SKU: 30002586
Size
  • In stock, ready to ship
  • Inventory on the way

Trackmachine 01 FRS

Parts & Accessories

  • Shipped to your local bike shop
The Trackmachine 01 FRS is the highly refined, stunningly engineered core of your ultimate track bike. With a rich heritage on the boards, its efficiency and adjustability continue to impress, and it's a bike that can quickly and easily be adapted for numerous track disciplines. Built from Premium Carbon and invested with our Vmax Aero Design technology, it features a Hinge Design fork, sliding rear dropouts, a threaded bottom bracket shell, plus an adjustable Aero Seatpost and integrated stem.

Technology

Technical Overview

Frameset

Frame:
Trackmachine 01 Premium Carbon with Vmax Aero Design P2P Positioning System | Sliding Dropouts

Fork:
Trackmachine 01 Premium Carbon with Vmax Aero Design Hinge-Design

Cockpit

Stem:
Vmax Aero Integrated Design | P2P Technology

Seat

Seatpost:
Trackmachine 01 Premium Carbon Aero Seatpost with P2P Positioning SyStem

Additional Information

Tire Clearance:
23mm

ASTM Classification:
Level 1

System Weight Limit:
150kg

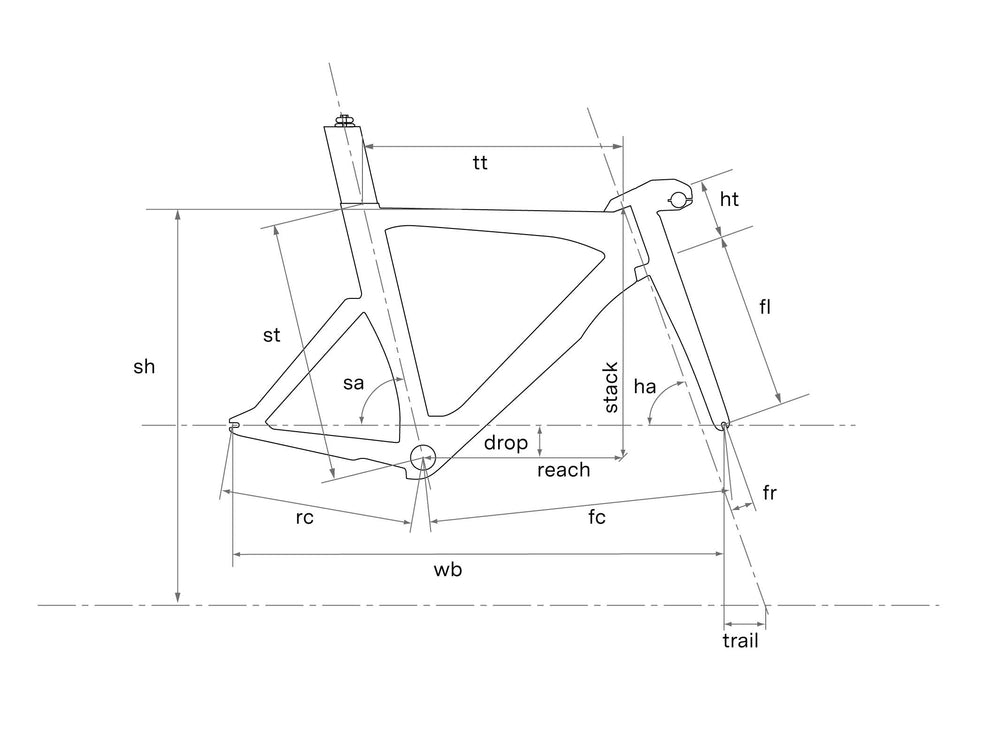

Size S M L
Rider Height <173 170-185 >183
Reach 390 408 430
Stack 471 506 544
BB Drop 50 58 58
Fork Length 363 363 363
Fork Rake 48 48 48
Front Center 586 604 626
Head Tube 94 134 163
Head Tube Angle 72 72 72
Rear Center 390-420 390-420 390-420
Seat Angle 74 74 74
Seat Tube 505 542 582
Seatpost Length 300 300 300
Seatpost Offset 30 / 10 / -10 / -30 30 / 10 / -10 / -30 30 / 10 / -10 / -30
Standover Height 751 779 817
Stem Angle p2p Adjustable p2p Adjustable p2p Adjustable
Stem Length p2p Adjustable p2p Adjustable p2p Adjustable
Top Tube 525 553 585
Trail 59 59 59
Wheelbase 963 981 1003
