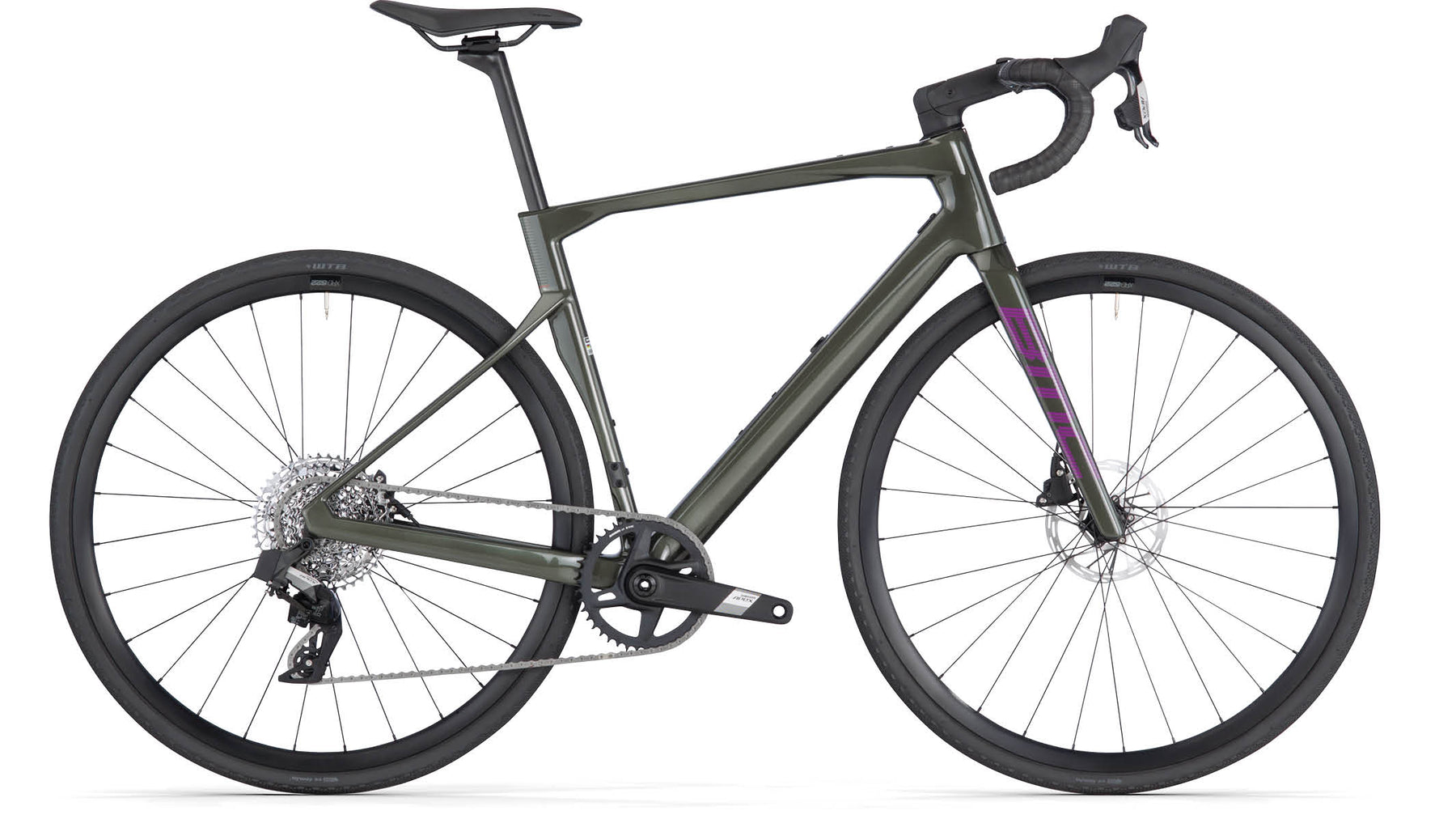

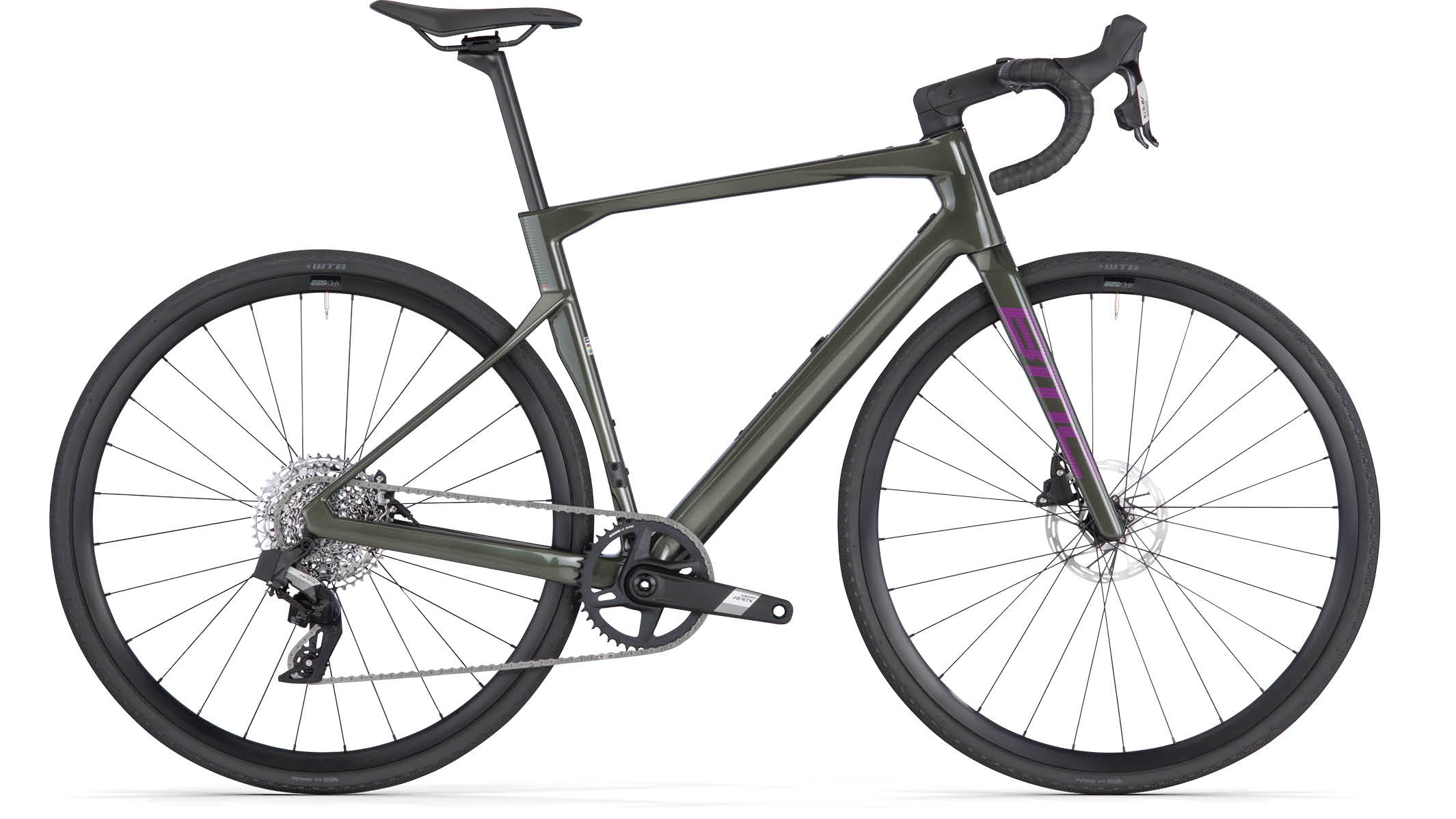

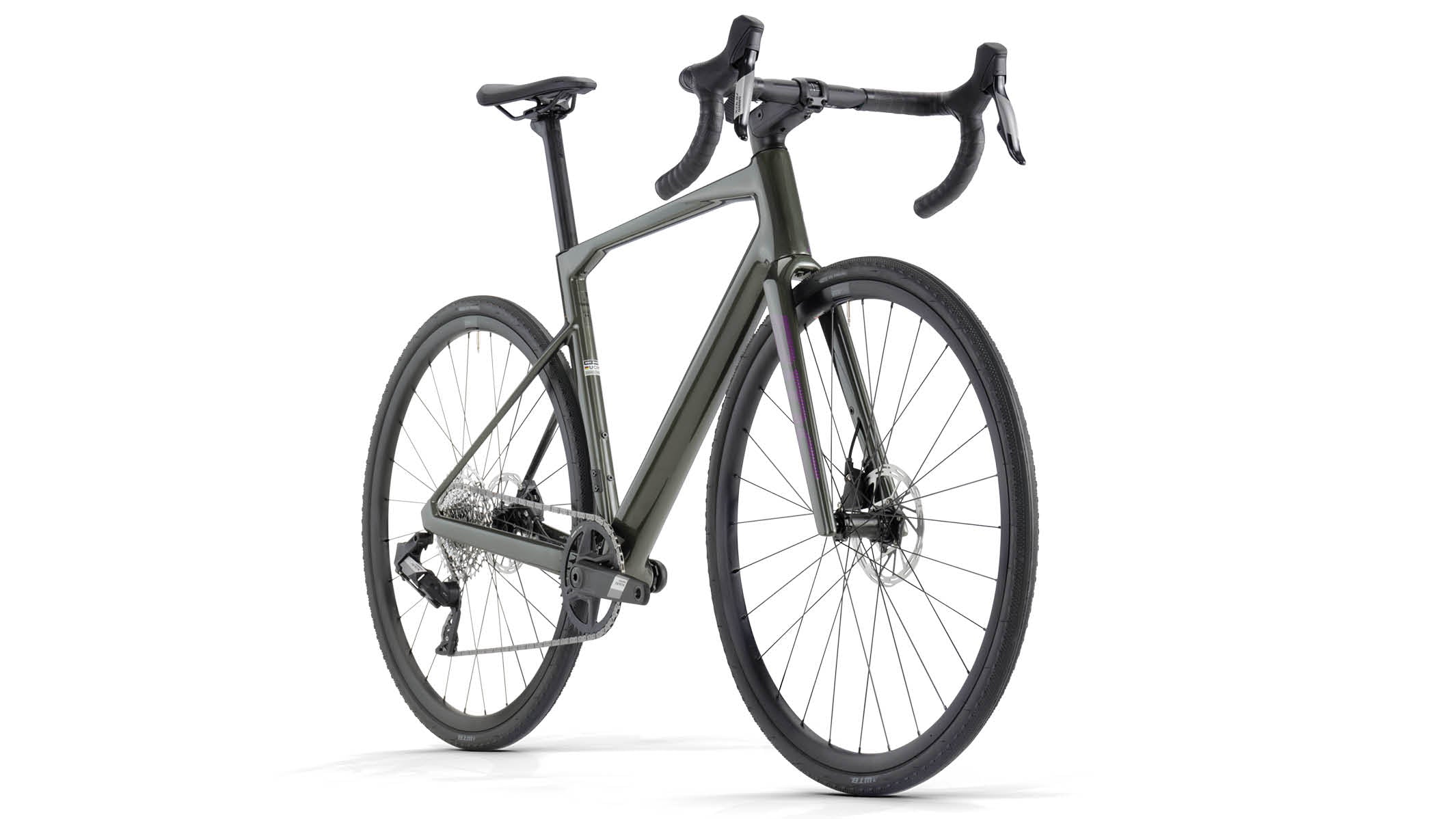

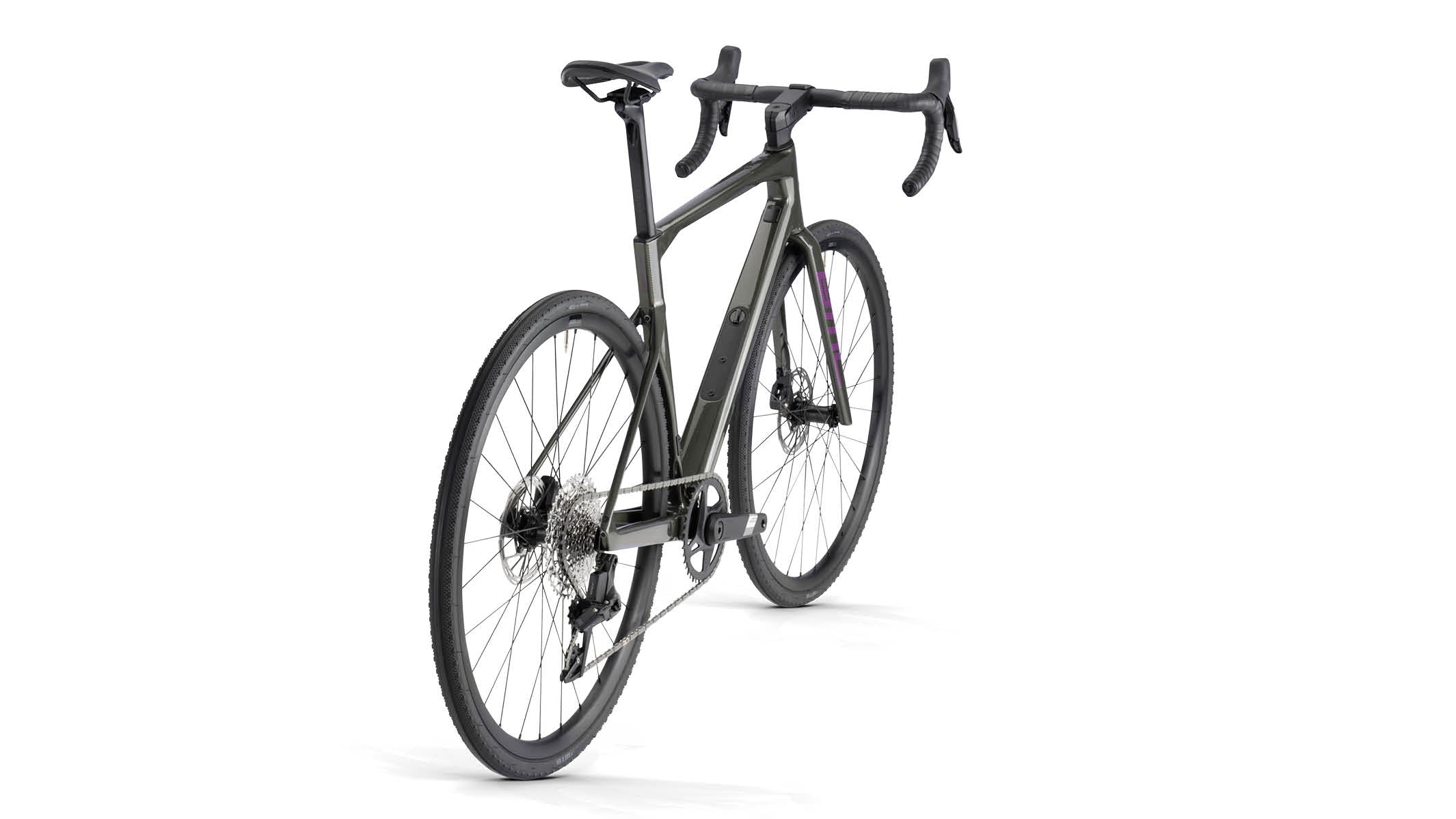

Roadmachine X THREE

STEEL GREEN / PURPLE

SRAM Apex XPLR eTap AXS
XRD-522 Wheelset
Downtube Storage

Regular priceEUR 4.299,00
EUR /

SKU: 30005296
Size

Roadmachine X THREE

Parts & Accessories

  • Shipped to your local bike shop
More capable, more comfortable, more adventurous, and more fun, the Roadmachine X is your invitation to go further. The complete build features a 1x SRAM Apex XPLR eTap AXS wireless groupset, XRD-522 wheels and gravel-ready 34mm WTB tires paired with the frameset that has full internal cable routing, a Premium Carbon D-Shape seatpost and ICS MTT suspension stem. It’s the Roadmachine that you’ve always wanted and needed.

Technology

Technical Overview

Frameset

Frame:
Roadmachine X Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle

Fork:
Roadmachine X Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Stem:
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
Roadmachine 01 X Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Fizik Terra Argo X5 | 150mm

Drivetrain

Crankset:
SRAM Apex 1 DUB WIDE

Chainrings:
42T

Cassette:
SRAM Apex AXS XPLR (XG-1231)

Cassette Size:
11-44T

Chain:
SRAM Apex

Rear Derailleur:
SRAM Apex XPLR eTap AXS

Shifters:
SRAM Apex eTap AXS

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SRAM Apex eTap AXS

Rotors:
SRAM Paceline

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
XRD-522 | Tubeless Ready | 25 mm

Hubs (F/R):
XRD-522

Tires:
WTB Byway | Distance+ Compound | TCS Light bead | Tubeless Ready | 34mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
40mm

Weight without Pedals:
8.9 Kg

ASTM Classification:
Level 2

System Weight Limit:
110kg

Size 47 51 54 56 58 61
Rider Height <160 158-174 172-180 178-186 184-192 >190
Reach 370 379 383 388 393 398
Stack 525 550 570 595 620 645
Bar Drop 117 117 117 117 117 117
Bar Reach 76.9 76.9 76.9 76.9 76.9 76.9
Bar Width 400 420 420 420 420 440
BB Drop 75 75 75 75 75 75
Crank Length 170 170 172.5 172.5 175 175
Fork Length 379 379 379 379 379 379
Fork Rake 50 50 45 45 45 45
Front Center 579 596 594 607 620 633
Head Tube 112 138 154 181 207 233
Head Tube Angle 71.4 71.4 72.2 72.2 72.2 72.2
Rear Center 415 415 415 415 415 415
Seat Angle 74.2 74.2 74.2 74.2 74.2 74.2
Seat Tube 414 461 488 508 529 550
Seatpost Length 280 320 360 360 400 400
Seatpost Offset 15 15 15 15 15 15
Standover Height 726 762 786 807 828 849
Stem Angle 0 0 0 0 0 0
Stem Length 80 90 100 110 110 110
Top Tube 520 537 546 559 571 581
Trail 63 63 63 63 63 63
Wheelbase 982 1000 997 1010 1023 1036
