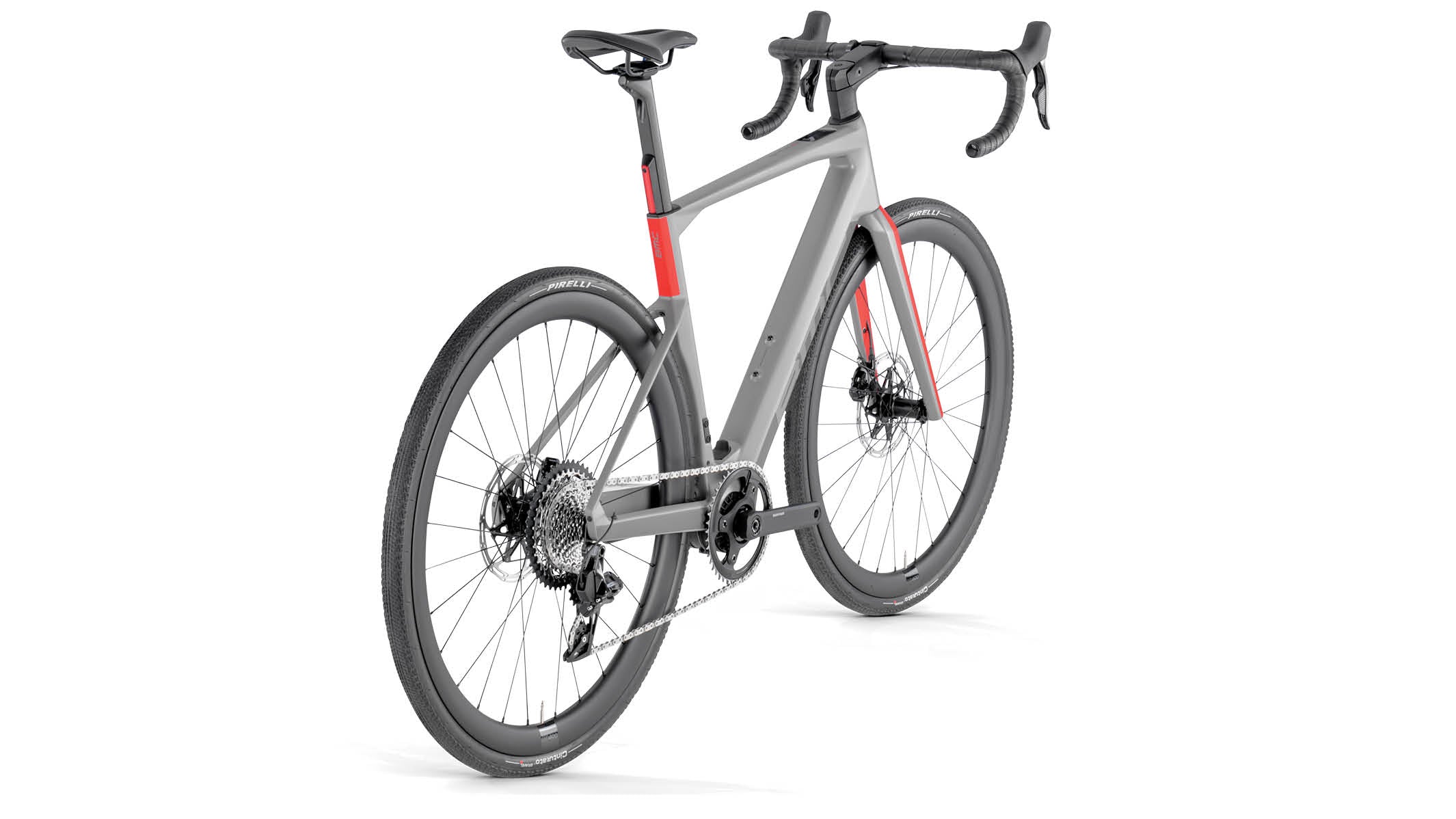

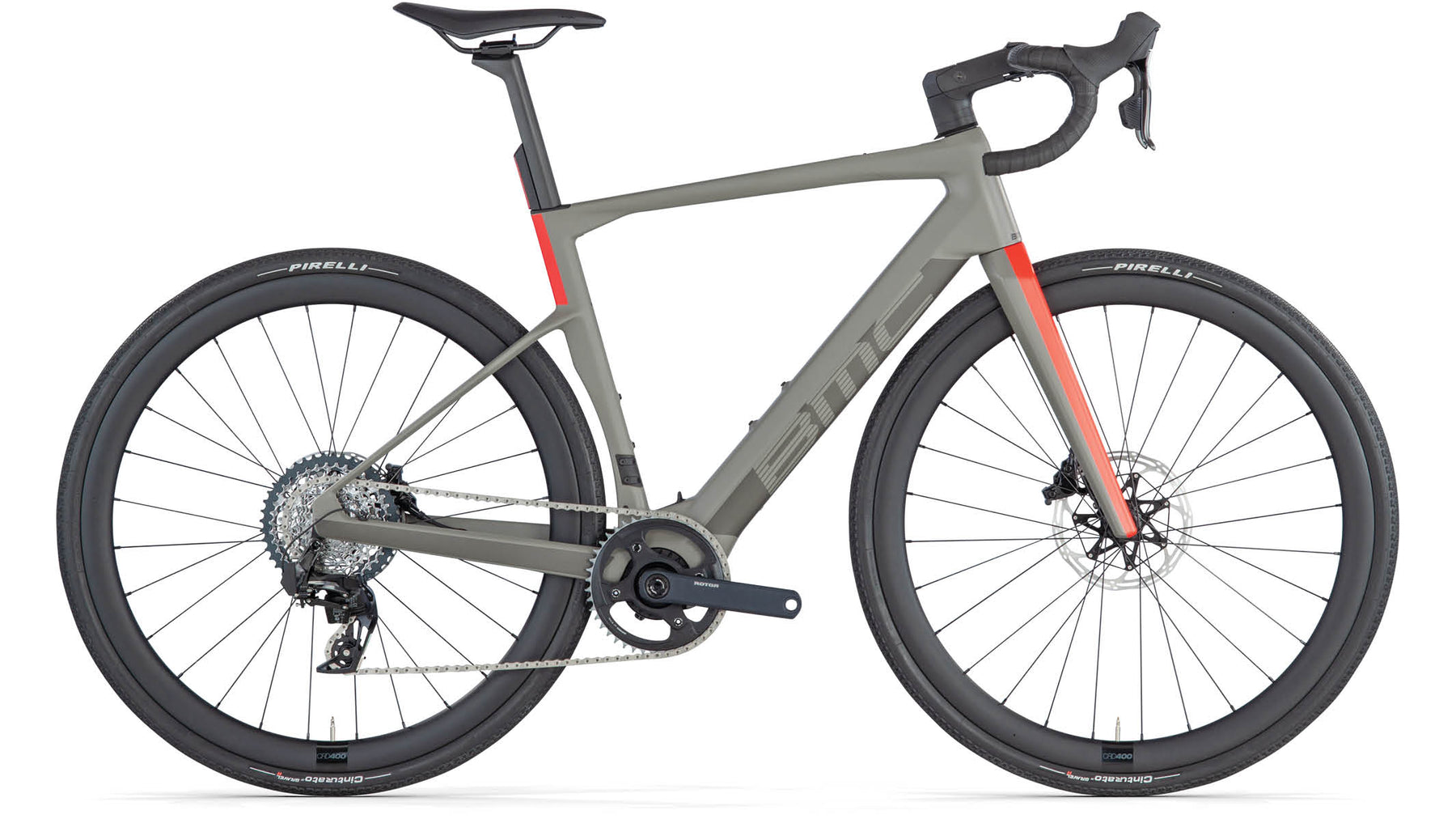

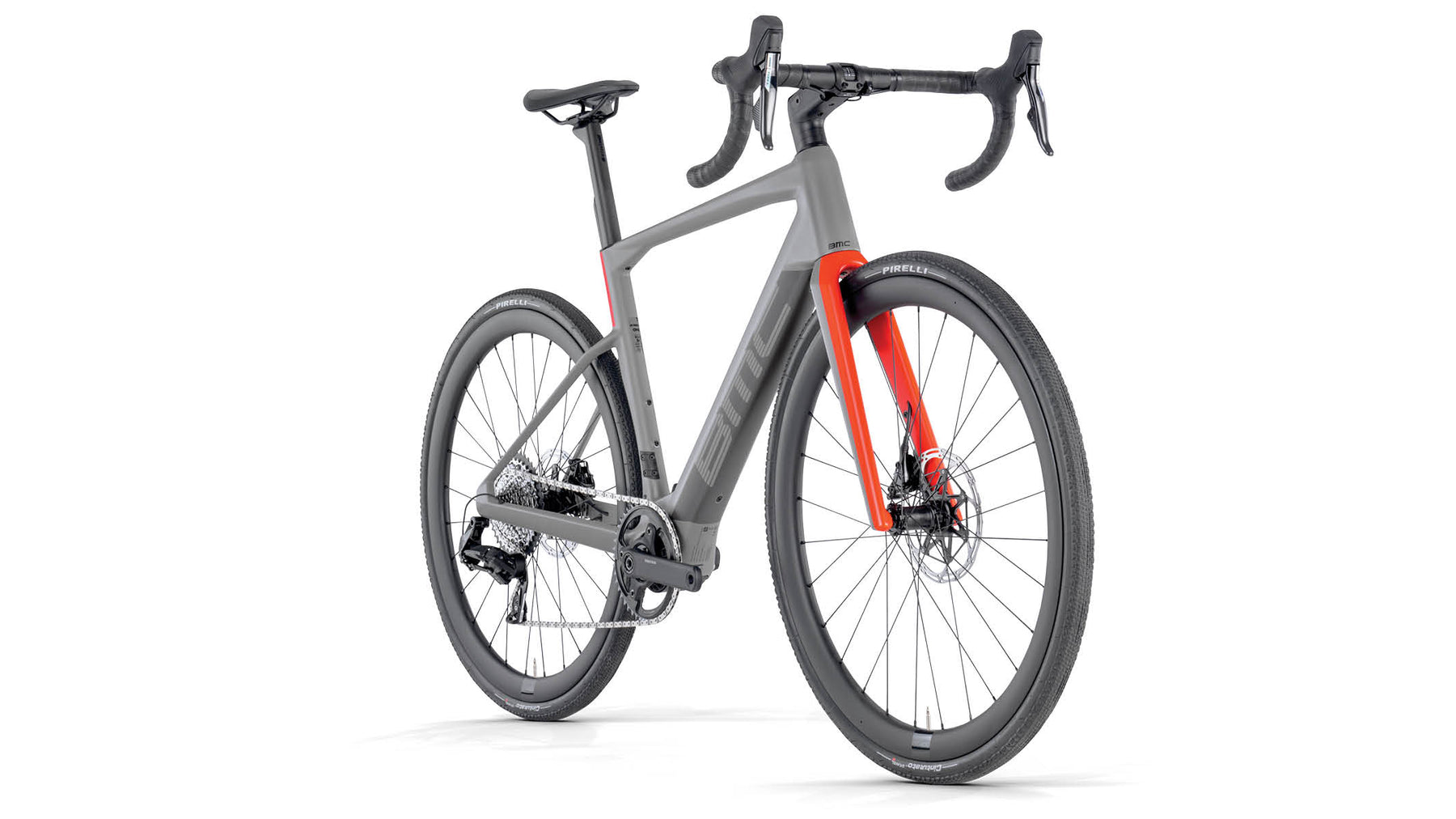

Name: Roadmachine 01 AMP X ONE
Brand: BMC
SKU: 30005837
Price: 8999.0 EUR
Availability: OutOfStock

Roadmachine 01 AMP X ONE | BMC | bikes | E-Bike, E-Bike | Road

Rhino Grey / Neon Red

TQ-HPR50 Drive Unit
SRAM Force XPLR eTap AXS
Pirelli Cinturato Gravel H, 35 mm

EUR 8.999,00

SKU: 30005837

Size —

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":40926200168527,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30005836","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine 01 AMP X ONE - 47","public_title":"47","options":["47"],"price":899900,"weight":18000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906512517","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926200201295,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30005837","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP X ONE - 51","public_title":"51","options":["51"],"price":899900,"weight":18000,"compare_at_price":null,"inventory_quantity":16,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906512500","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926200299599,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30005838","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP X ONE - 54","public_title":"54","options":["54"],"price":899900,"weight":18000,"compare_at_price":null,"inventory_quantity":32,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906512593","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926200496207,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30005839","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP X ONE - 56","public_title":"56","options":["56"],"price":899900,"weight":18000,"compare_at_price":null,"inventory_quantity":12,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906512685","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926200528975,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30005840","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP X ONE - 58","public_title":"58","options":["58"],"price":899900,"weight":18000,"compare_at_price":null,"inventory_quantity":16,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906512678","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926200561743,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30005841","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP X ONE - 61","public_title":"61","options":["61"],"price":899900,"weight":18000,"compare_at_price":null,"inventory_quantity":1,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906512661","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Watch Now

Enhance your long rides with the Roadmachine 01 AMP X ONE, a road e-bike crafted to expand your horizons. Experience boosted performance with the top-of-the-line TQ-HPR50 drive system, complemented by a premium carbon frame and fork featuring the latest Tuned Compliance Concept Endurance technology. Enjoy comfort on various terrains, thanks to internal cable routing, a high-quality carbon D-Shape seatpost, generous tire clearance, and the advanced ICS MTT x Redshift Suspension stem. Blaze your own trail with the Roadmachine 01 AMP X ONE, equipped with the SRAM Force XPLR eTap AXS 12-speed groupset, 35 mm Pirelli Cinturato Gravel tires, and the powerful TQ-HPR50 drive unit.

Technology

Hidden Power

Roadmachine 01 AMP X extends your journey thanks to the revolutionary TQ-HPR50 drive unit. Powerful, light and compact, it is seamlessly integrated into the frame for an uncompromised look and natural ride feeling.

Fast and Forgiving

The most capable version of our Tuned Compliance Concept Endurance technology paves the way for a fast and forgiving ride. Take the edge of the roughest roads to push harder and ride further with the ultimate balance between comfort and performance.

Extended Geometry

The Roadmachine 01 AMP X is built around the TQ system with a relaxed endurance geometry for more comfort.

Tire Clearance

This amplified endurance machine is your choice for multi-surface rides with its 35 mm wide tires. It arrives with a frame clearance for bigger tires and rims with a maximum measured width of 38 mm allowing you to go your own way, every day.

Technical Overview

Frameset

Frame:
Roadmachine 01 AMP X Premium Carbon with Tuned Compliance Concept Endurance | Integrated Battery | Internal Cable Routing | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Roadmachine 01 AMP X Premium Carbon with Tuned Compliance Concept Endurance | Flat Mount Disc | 12 x 100mm Thru-Axle

E-System

Drive Unit:
TQ-HPR50 Drive Unit

Battery Pack:
TQ Battery | 360 Wh

Display:
TQ Display | 2" O-LED | Bluetooth / ANT+

Charger:
TQ-HPR50 4A Charger

Cockpit

Stem:
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
Roadmachine 01 AMP Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Fizik Terra Argo X5 | 150mm

Drivetrain

Crankset:
Rotor eVegast | SRAM X-Sync

Chainrings:
44T

Cassette:
SRAM Force AXS XPLR (XG-1271)

Cassette Size:
10-44T

Chain:
SRAM Apex

Rear Derailleur:
SRAM Force XPLR eTap AXS

Shifters:
SRAM Force eTap AXS

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SRAM Force eTap AXS

Rotors:
SRAM Centerline | Centerlock

Rotor Size (F/R):
180 / 180mm

Wheels

Rims:
CRD-400 Carbon | Tubeless Ready | 40mm

Hubs (F/R):
CRD-400

Tires:
Pirelli Cinturato Gravel H TLR | 35mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

Integrated Rear Light

Additional Information

Tire Clearance:

ASTM Classification:

Weight without Pedals:

Weight Limit:

Size	47	51	54	56	58	61
Rider Height	<162	162-174	172-180	178-186	184-192	>190
Reach	370	379	383	388	393	398
Stack	525	550	570	595	620	645
Bar Drop	125	125	125	125	125	125
Bar Reach	70	70	70	70	70	70
Bar Width	400	420	420	420	420	440
BB Drop	75	75	75	75	75	75
Crank Length	170	170	170	170	170	170
Fork Length	380	380	380	380	380	380
Fork Rake	50	50	45	45	45	45
Front Center	579	596	594	607	620	633
Head Tube	112	138	154	181	207	233
Head Tube Angle	71.4	71.4	72.2	72.2	72.2	72.2
Rear Center	415	415	415	415	415	415
Seat Angle	74.2	74.2	74.2	74.2	74.2	74.2
Seat Tube	420	460	500	525	545	575
Seatpost Length	230	280	280	280	280	330
Seatpost Offset	15	15	15	15	15	15
Standover Height	728	755	786	810	829	850
Stem Angle	0	0	0	0	0	0
Stem Length	80	90	100	100	110	110
Top Tube	519	535	544	556	568	581
Trail	63	63	63	63	63	63
Wheelbase	982	1000	997	1010	1023	1036
