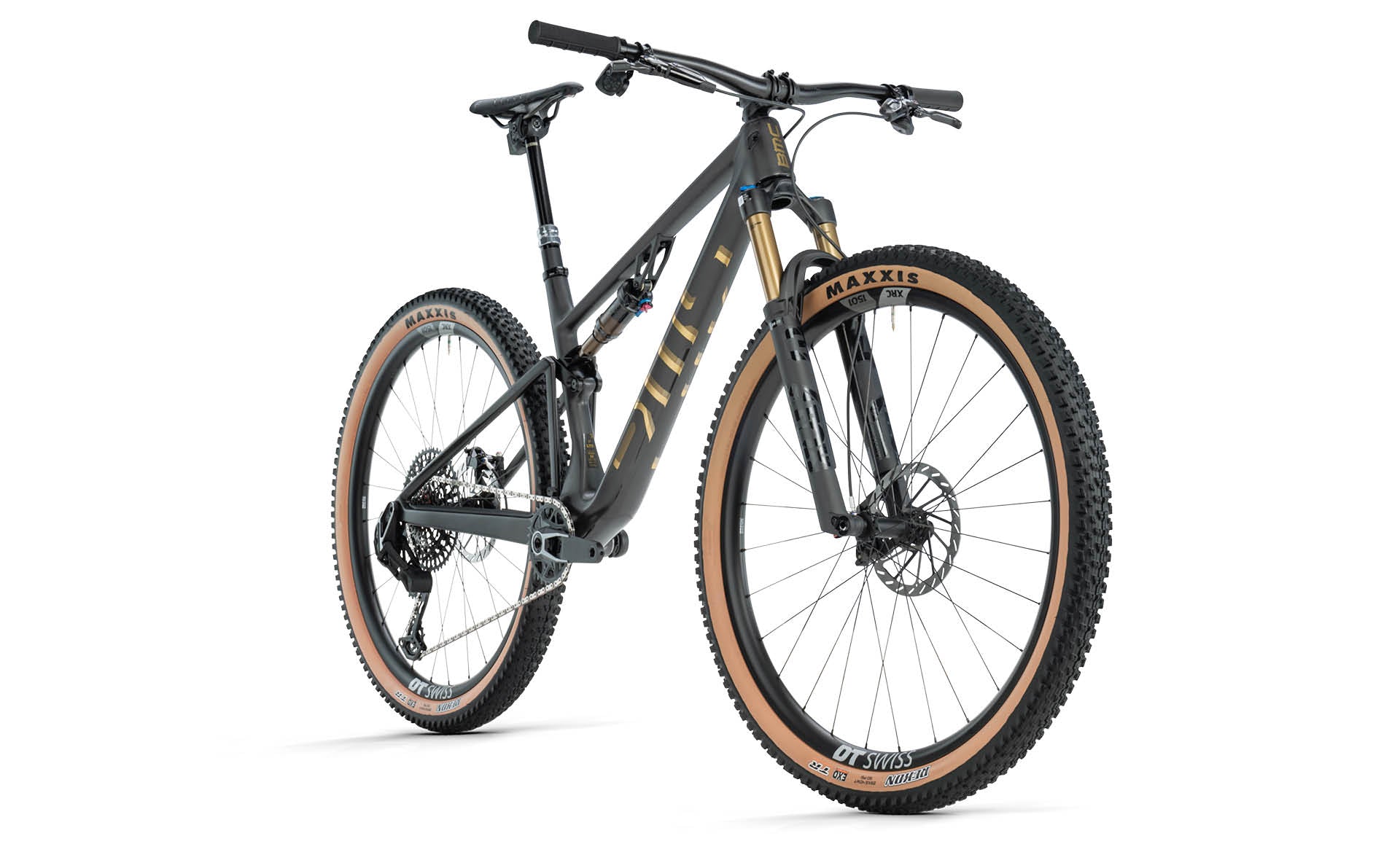

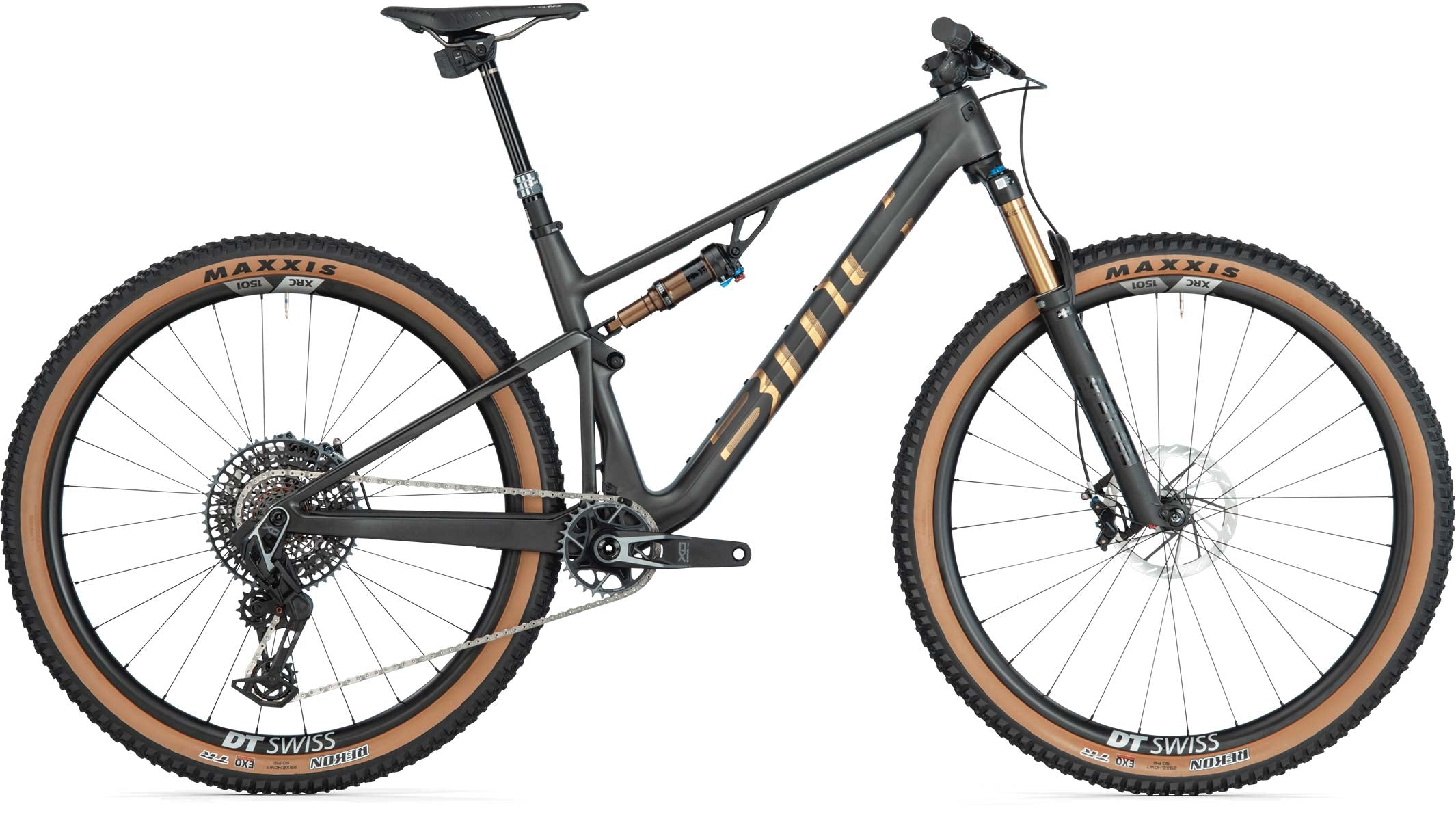

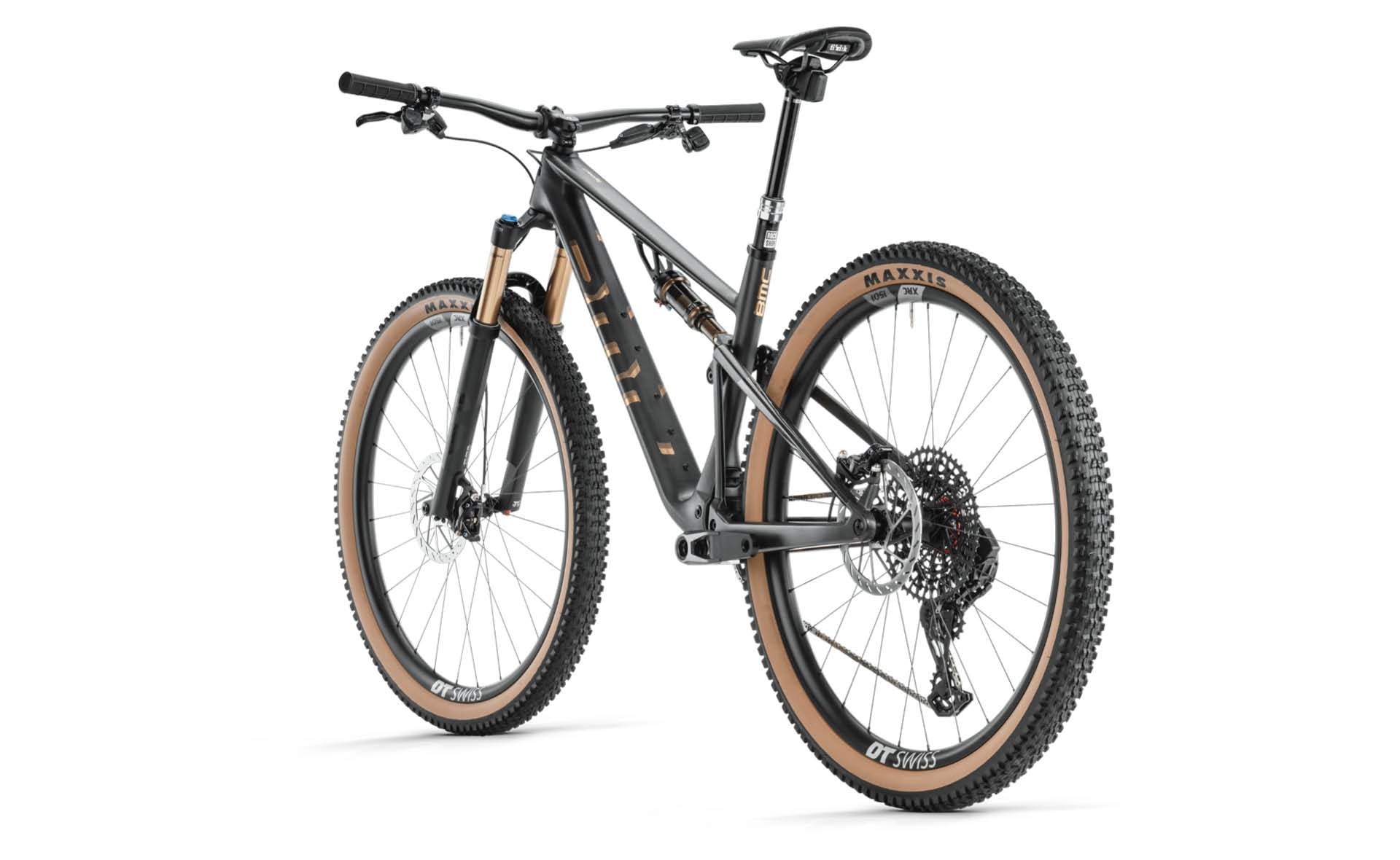

Fourstroke LT LTD

CARBON BLACK / GOLD

SRAM X0 Eagle Transmission Drivetrain
Fox Float 34 SC Factory Fork / Fox Float DPS Factory Shock
DT Swiss XRC 1501 Wheelset

Regular priceEUR 9.999,00
EUR /

SKU: 30005388
Size

Fourstroke LT LTD

Parts & Accessories

  • Shipped to your local bike shop
Fourstroke LT is an XC bike designed for riders who want even more performance. Offering trail-riding at speed with progressive 120mm of our updated APS dual-link suspension travel, there is no limit to what you and the Fourstroke LT can achieve. The full-carbon frame includes our most progressive BWC geometry now fitting two water bottles, integrated fork stopper and frame protection. Fourstroke LT LTD plays the trails with confidence with a SRAM X0 Eagle AXS Transmission drivetrain, Fox Float 34 SC Factory fork and Fox Float DPS Factory shock, DT Swiss XRC 1501 wheels with 30mm inner width and the RockShox Reverb AXS seatpost.

Technology

Technical Overview

Frameset

Frame:
Fourstroke LT Carbon | APS Suspension System | 120mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Fork:
Fox Float 34 SC Factory | Kashima Coating | FIT4

Suspension

Front Suspension:
Fox Float 34 SC Factory | Kashima Coating | FIT4

Rear Suspension:
Fox Float DPS Factory | Kashima Coating | EVOL LV

Cockpit

Stem:
Truvativ Atmos 7K

Handlebar:
BMC MRB 01 Carbon | 760mm

Seat

Seatpost:
RockShox Reverb AXS

Saddle:
Fizik Antares R5

Drivetrain

Crankset:
SRAM X0 Eagle

Chainrings:
32T

Cassette:
SRAM X0 Eagle Transmission XS-1295

Cassette Size:
10-52T

Chain:
SRAM XX Eagle Transmission Flattop

Rear Derailleur:
SRAM X0 Eagle Transmission

Shifters:
SRAM AXS Pod Controller

Gears:
1 x 12

Bottom Bracket:
PF92 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM G2 Ultimate

Rotors:
SRAM HS2

Rotor Size (F/R):
180 / 180

Wheels

Rims:
DT Swiss XRC 1501 | 30mm Inner Width

Hubs (F/R):
DT Swiss 240 Straightpull | Ratchet EXP 36

Tires:
Maxxis Rekon 2.4" | EXO TR

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
62mm

ASTM Classification:
Level 3

System Weight Limit:
110kg

Size S M L XL
Rider Height <172 172-182 180-188 >188
Reach 437 457 477 500
Stack 584 592 600 615
Bar Rise 15 15 15 15
Bar Sweep 9 9 9 9
Bar Width 760 760 760 760
BB Drop 38 38 38 38
Crank Length 165 170 175 175
Fork Length 530 530 530 530
Fork Rake 44 44 44 44
Front Center 711 743 760 790
Head Tube 84 93.5 101 118
Head Tube Angle 66.5 66.5 66.5 66.5
Rear Center 431 430.5 431 431
Seat Angle 76.7 76.7 76.7 76.7
Seat Tube 420 430 460 490
Seatpost Drop 150 160 160 185
Standover Height 727 727 727 767
Stem Angle 6 6 6 6
Stem Length 40 50 50 60
Top Tube 576 599 623 651
Trail 115 115 115 1115
Wheelbase 1140 1172 1189 1219
