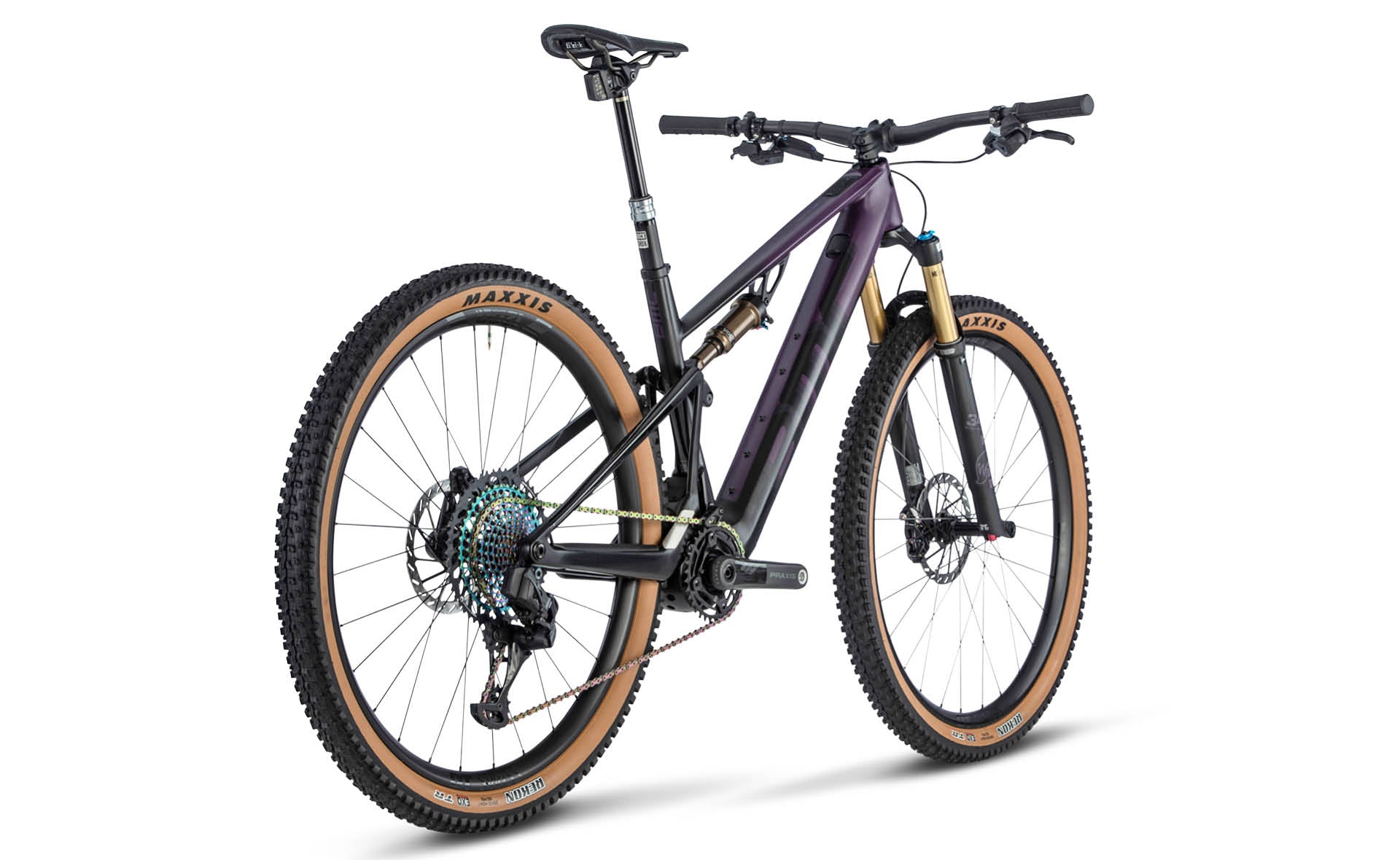

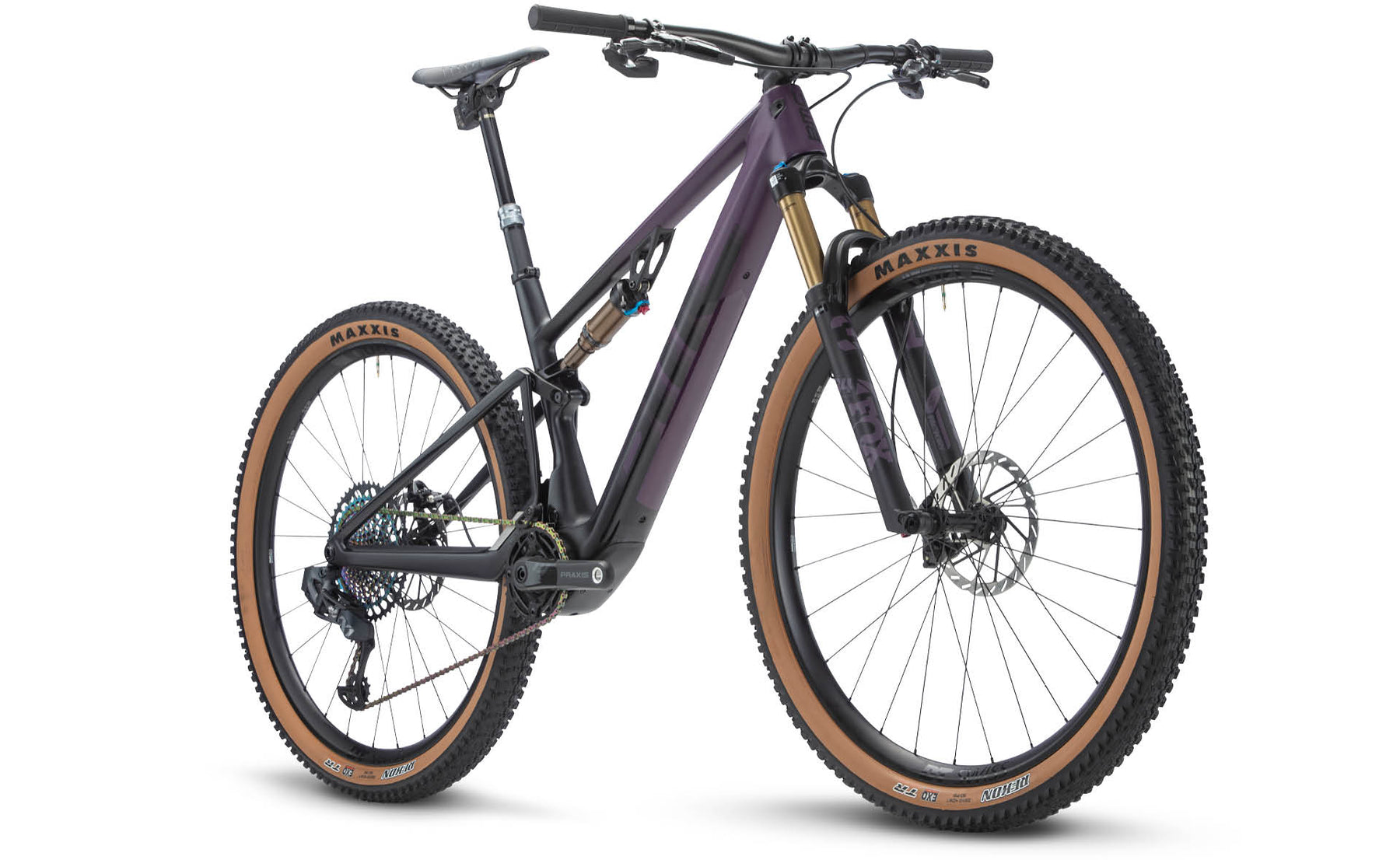

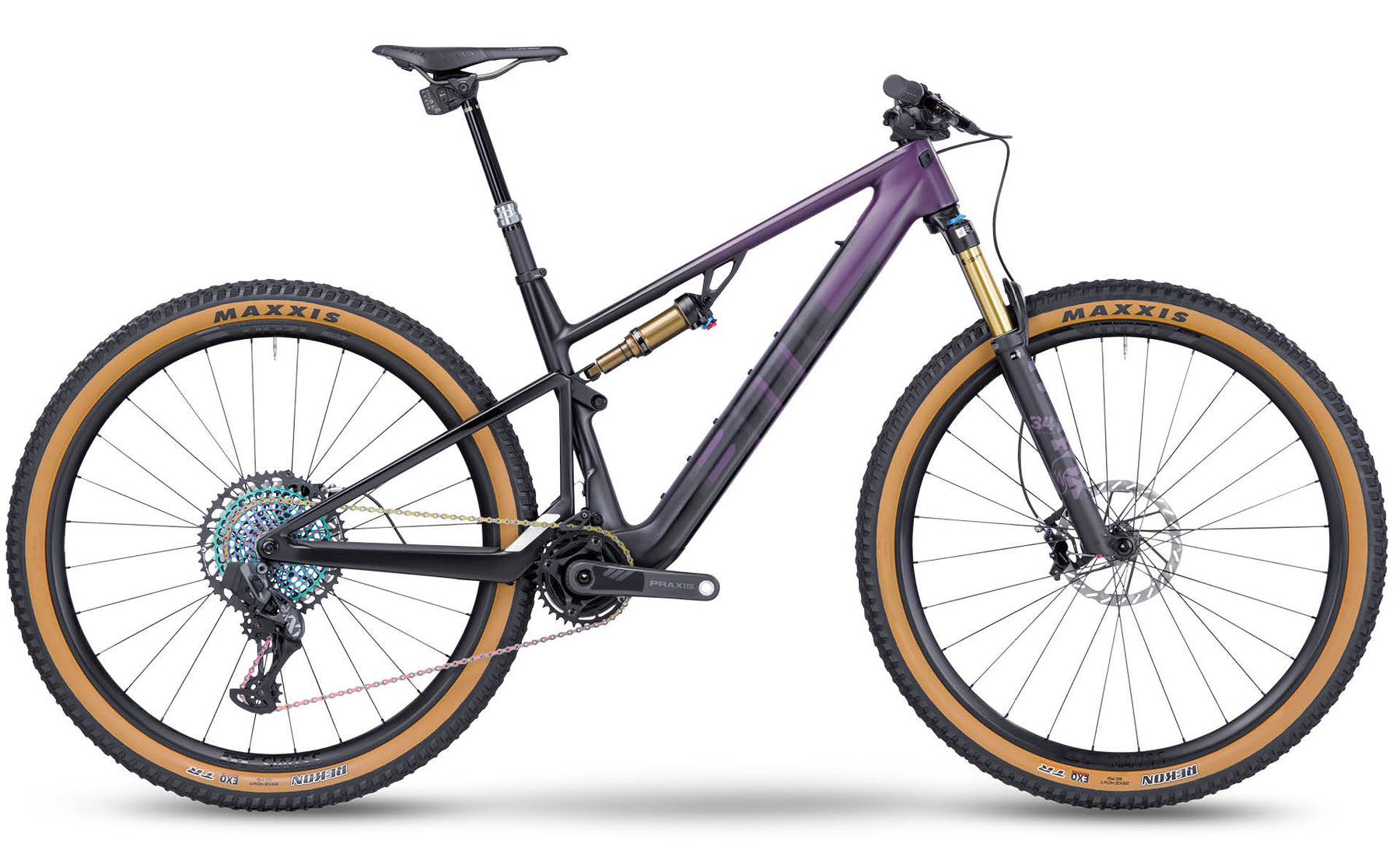

Fourstroke AMP LT LTD

DEEP PURPLE / BLACK

TQ-HPR50 Drive Unit, 360 Wh Battery
SRAM XX1 Eagle AXS Drivetrain
Fox Float 34 SC Factory Fork / Fox Float DPS Factory EVOL LV Shock

Regular priceEUR 13.999,00
EUR /

SKU: 30002807
Size

Fourstroke AMP LT LTD

Parts & Accessories

  • Shipped to your local bike shop
Amplify your trail-game with the all-new Fourstroke AMP LT built to perform on every terrain. This advanced XC performance machine delivers a progressive riding feel with 120mm of revolutionized APS dual-link suspension travel. Hidden trail-racing power comes curtesy of the trailblazing TQ-HPR50 drive system for nonstop uphill and downhill speed to make sure nothing stands in your way. The full-carbon frame includes our most progressive Big Wheel Concept Race geometry to accommodate two water bottles, an integrated fork stopper and frame protection. Hit the trails at speed with Fourstroke AMP LT LTD arriving with a SRAM XX1 Eagle AXS drivetrain, Fox Float 34 SC Factory fork and Fox Float DPS Factory EVOL LV shock, a DT Swiss XRC 1200 wheelset with 30mm inner width, RockShox Reverb AXS seatpost and the powerful TQ-HPR50 drive unit.

Technology

Technical Overview

Frameset

Frame:
Fourstroke LT AMP Carbon | APS Suspension System | 120mm Travel | Integrated Battery | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Suspension

Front Suspension:
Fox Float 34 SC Factory | Kashima Coating | FIT4

Rear Suspension:
Fox Float DPS Factory | Kashima Coating | EVOL LV

E-System

Drive Unit:
TQ-HPR50 Drive Unit

Battery Pack:
TQ Battery | 360 Wh | Certified by UL LLC

Display:
TQ VO2 Display | 2" O-LED | Bluetooth / ANT+

Drive Unit Control:
TQ V01 Remote

Charger:
TQ-HPR50 4A Charger

Cockpit

Stem:
Truvativ Atmos 7K

Handlebar:
BMC MRB 01 Carbon | 760mm

Seat

Seatpost:
RockShox Reverb AXS

Saddle:
Fizik Antares R5

Drivetrain

Crankset:
Praxis Carbon eCrank | SRAM X Sync

Chainrings:
34T

Cassette:
SRAM XX1 XG-1299 Eagle

Cassette Size:
10-52T

Chain:
SRAM XX1 Eagle

Rear Derailleur:
SRAM Apex XPLR

Shifters:
SRAM AXS Controller

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SRAM G2 Ultimate

Rotors:
SRAM Centerline

Rotor Size (F/R):
180 / 180mm

Wheels

Rims:
DT Swiss XRC 1200 | 30mm Inner Width

Hubs (F/R):
DT Swiss 180 Straightpull | Ratchet EXP 36

Tires:
Maxxis Rekon 2.4" | EXO TR

Additional Information

Tire Clearance:
60mm

ASTM Classification:
Level 3

System Weight Limit:
110kg

Size S M L XL
Rider Height <172 172-182 180-188 >188
Reach 437 457 476 496
Stack 594 605 615 627
Bar Rise 20 20 20 20
Bar Sweep 7.5 7.5 7.5 7.5
Bar Width 760 760 760 760
BB Drop 40 40 40 40
Crank Length 165 170 170 170
Fork Length 531 531 531 531
Fork Rake 44 44 44 44
Front Center 725 751 775 800
Head Tube 90 102 113 125
Head Tube Angle 66.5 66.5 66.5 66.5
Rear Center 435 435 435 435
Seat Angle 77 77 77 77
Seat Tube 420 430 470 490
Seatpost Drop 100 150 170 170
Standover Height 730 730 730 730
Stem Angle 6 6 6 6
Stem Length 40 50 50 60
Top Tube 574 597 620 644
Trail 115 115 115 115
Wheelbase 1157 1178 1202 1227
