La Fourstroke es la piedra angular de las bicicletas de Cross-Country, diseñada para sobresalir en todos los niveles. Con una versatilidad que va más allá de los circuitos, esta máquina de XC sienta un nuevo estándar con los 100 mm de recorrido del sistema de suspensión APS de doble bieleta. La geometría redefinida Big Wheel Concept mejora el rendimiento en un cuadro ligero de carbono con protección integrada y que admite dos portabidones para recorridos de larga distancia. La Fourstroke ONE está diseñada para dominar y viene con transmisión SRAM GX Eagle AXS Transmission, horquilla RockShox SID SL Select+ y amortiguador RockShox SIDLuxe, un juego de ruedas XCD-30W con una anchura interna de 30 mm y la tija telescópica Bikeyoke Divine.
Tecnología

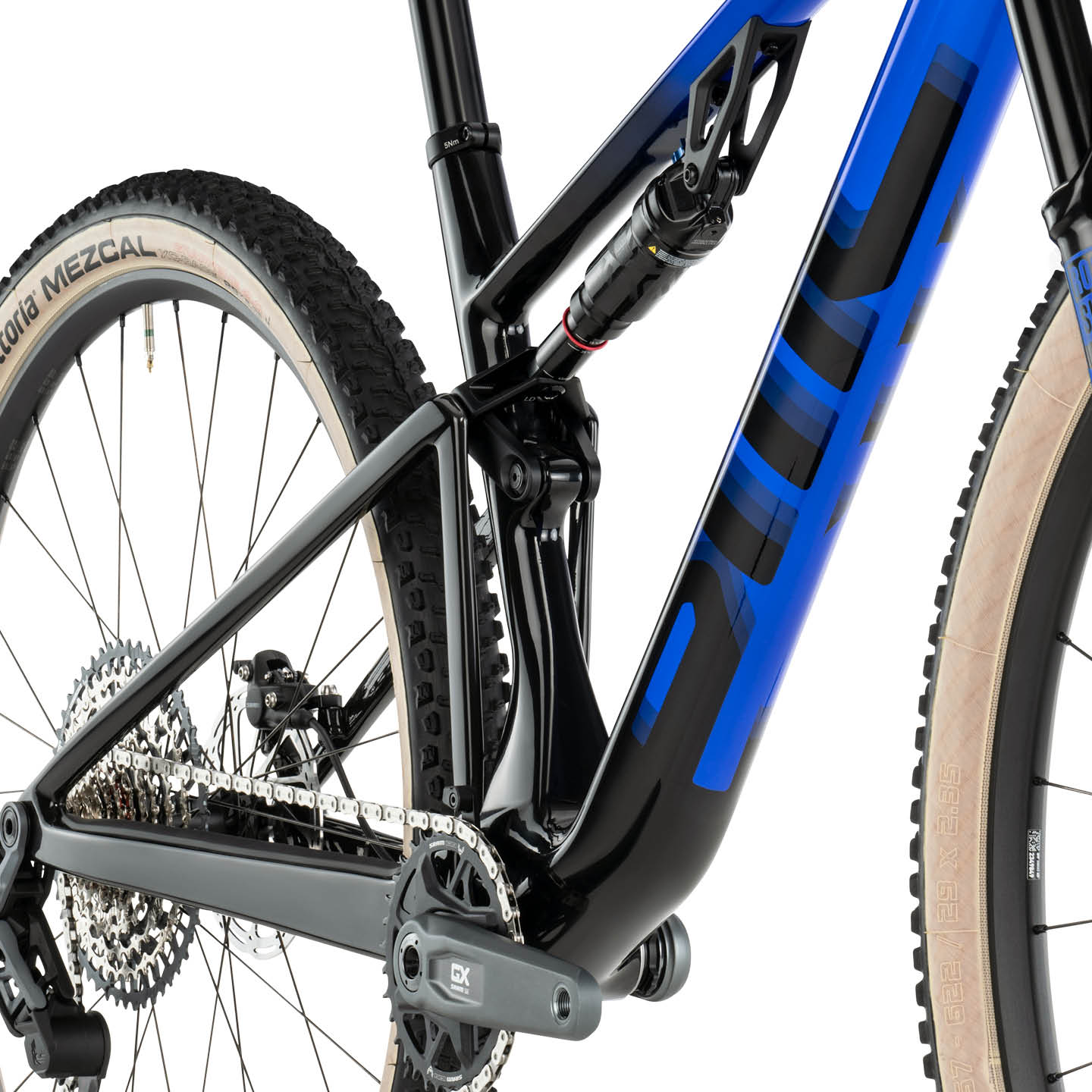

Sistema de suspensión APS optimizado
Largas tiradas
Geometría redefinida
Impulso en cuanto a diseño
Descripción técnica
Cuadro
Cuadro:
Fourstroke Carbon | APS Suspension System, 100mm Travel- Fully | Guided Internal Cable Routing | PF92 Bottom Bracket | Post Mount Disc | 12x148mm Boost Thru-Axle
Horquilla:
Rock Shox SID SL Select+ | TwistLoc Lockout
Suspensión
Suspensión Delantera:
Rock Shox SID SL Select+ | TwistLoc Lockout
Suspensión Trasera:
Rock Shox SIDLUXE | TwistLoc Lockout
Cockpit
Manillar:
BMC MFB01 Carbon 760mm
Potencia:
MSM01 Stem
Tija de Sillín:
Bikeyoke Divine
Sillín:
Fizik Antares R7
Seat
Tija de Sillín:
Bikeyoke Divine
Sillín:
Fizik Antares R7
Transmisión
Marchas:
1x12
Platos y Bielas:
SRAM GX Eagle 34T
Cassette:
SRAM GX Eagle Transmission 10-52T (XS-1275)
Cadena:
SRAM GX Eagle Transmission Flattop
Cambio Trasero:
SRAM GX Eagle Transmission
Manetas de Cambio:
SRAM AXS Pod Controller
Frenos
Pinzas de Freno:
SRAM Level TLM / SRAM Centerline Rotors
(160/160 S-M, 180/160 L-XL)
Discos:
SRAM Centerline Rotors (160/160 S-M, 180/160 L-XL) - 6-Bolt
Ruedas
Llantas:
XCD-30W Carbon Wheelset | 30mm Inner Width
Bujes:
XCD-30W
Neumáticos:
Vittoria Mezcal 2.35"
Información Tubeless:
Tubeless Ready Rims / Tubeless Tires
Información adicional
Anchura Máx. de Neumático:
62mm (Measured Width)
Clasificación ASTM:
Level 3
Límite de Peso:
110 Kg
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <172 | 172-182 | 180-188 | >188 |
| Reach | 437 | 457 | 477 | 500 |
| Stack | 584 | 592 | 600 | 615 |
| Bar Drop | ||||
| Bar Reach | ||||
| Bar Rise | 4 | 4 | 4 | 4 |
| Bar Sweep | 8 | 8 | 8 | 8 |
| Bar Width | 760 | 760 | 760 | 760 |
| Base Bar Drop Flat Cockpit | ||||
| Base Bar Drop V-Cockpit | ||||
| Base Bar Reach Flat Cockpit | ||||
| Base Bar Reach V-Cockpit | ||||
| BB Drop | 53 | 53 | 53 | 53 |
| BB Drop (SLACK) | ||||
| BB Drop (STEEP) | ||||
| BB Height (SLACK) | ||||
| BB Height (STEEP) | ||||
| Chainstay | ||||
| Crank Length | 170 | 170 | 170 | 175 |
| LT | BB Drop (SLACK) | ||||
| LT | BB Drop (STEEP) | ||||
| LT | BB Height (SLACK) | ||||
| LT | BB Height (STEEP) | ||||
| LT | Chainstay | ||||
| LT | Fork Length | ||||
| LT | Fork Rake | ||||
| LT | Frame Size | ||||
| LT | Front Center (SLACK) | ||||
| LT | Front Center (STEEP) | ||||
| LT | Head Tube | ||||
| LT | HT Angle (SLACK) | ||||
| LT | HT Angle (STEEP) | ||||
| LT | Reach (SLACK) | ||||
| LT | Reach (STEEP) | ||||
| LT | Rider Height | ||||
| LT | Seat Tube | ||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||
| LT | ST Angle Actual (SLACK) | ||||
| LT | ST Angle Actual (STEEP) | ||||
| LT | ST Angle Effective (SLACK) | ||||
| LT | ST Angle Effective (STEEP) | ||||
| LT | Stack (SLACK) | ||||
| LT | Stack (STEEP) | ||||
| LT | Stand Over Height (80 in Front of BB) | ||||
| LT | Stand Over Height (Lowest Point) | ||||
| LT | Top Tube (SLACK) | ||||
| LT | Top Tube (STEEP) | ||||
| LT | Wheelbase (SLACK) | ||||
| LT | Wheelbase (STEEP) | ||||
| ST | BB Drop (SLACK) | ||||
| ST | BB Drop (STEEP) | ||||
| ST | BB Height (STACK) | ||||
| ST | BB Height (STEEP) | ||||
| ST | Chainstay | ||||
| ST | Fork Length | ||||
| ST | Fork Rake | ||||
| ST | Frame Size | ||||
| ST | Front Center (SLACK) | ||||
| ST | Front Center (STEEP) | ||||
| ST | Head Tube | ||||
| ST | HT Angle (SLACK) | ||||
| ST | HT Angle (STEEP) | ||||
| ST | Reach (SLACK) | ||||
| ST | Reach (STEEP) | ||||
| ST | Rider Height | ||||
| ST | Seat Tube | ||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||
| ST | ST Angle Actual (SLACK) | ||||
| ST | ST Angle Actual (STEEP) | ||||
| ST | ST Angle Effective (SLACK) | ||||
| ST | ST Angle Effective (STEEP) | ||||
| ST | Stack (SLACK) | ||||
| ST | Stack (STEEP) | ||||
| ST | Stand Over Height (80 in Front of BB) | ||||
| ST | Stand Over Height (Lowest Point) | ||||
| ST | Top Tube (SLACK) | ||||
| ST | Top Tube (STEEP) | ||||
| ST | Wheelbase (SLACK) | ||||
| ST | Wheelbase (STEEP) | ||||
| Fork Length | 513 | 513 | 513 | 513 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Frame Size | ||||
| Front Center | 714 | 738 | 762 | 791 |
| Front Center (SLACK) | ||||
| Front Center (STEEP) | ||||
| Head Tube | 83.84 | 93.5 | 101.25 | 117.58 |
| Head Tube Angle | 66.5 | 66.5 | 66.5 | 66.5 |
| HT Angle (SLACK) | ||||
| HT Angle (STEEP) | ||||
| Pad Reach Flat Cockpit | ||||
| Pad Reach V-Cockpit | ||||
| Pad Stack Flat Cockpit | ||||
| Pad Stack V-Cockpit | ||||
| Reach (SLACK) | ||||
| Reach (STEEP) | ||||
| Rear Center | 432 | 432 | 432 | 432 |
| Saddle Height Range | ||||
| Seat Angle | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube | 420 | 440 | 470 | 510 |
| Seatpost Drop | 80 | 80 | 100 | 100 |
| Seatpost Length | ||||
| Seatpost Offset | ||||
| ST Angle @750mm Saddle Height (SLACK) | ||||
| ST Angle @750mm Saddle Height (STEEP) | ||||
| ST Angle Actual (SLACK) | ||||
| ST Angle Actual (STEEP) | ||||
| ST Angle Effective (SLACK) | ||||
| ST Angle Effective (STEEP) | ||||
| Stack (SLACK) | ||||
| Stack (STEEP) | ||||
| Stand Over Height (80 in Front of BB) | ||||
| Stand Over Height (Lowest Point) | ||||
| Standover Height | 725 | 725 | 725 | 725 |
| Stem Angle | -5 | -5 | -5 | -5 |
| Stem Length | 50 | 60 | 60 | 70 |
| Top Tube | 574 | 597 | 621.2 | 649.23 |
| Top Tube (SLACK) | ||||
| Top Tube (STEEP) | ||||
| Trail | 113 | 113 | 113 | 113 |
| Wheelbase | 1139 | 1171 | 1188 | 1218 |
| Wheelbase (SLACK) | ||||
| Wheelbase (STEEP) |
